375H Tier 2 & 3 Portable Air Compressors

Total Accessibility and Reliability

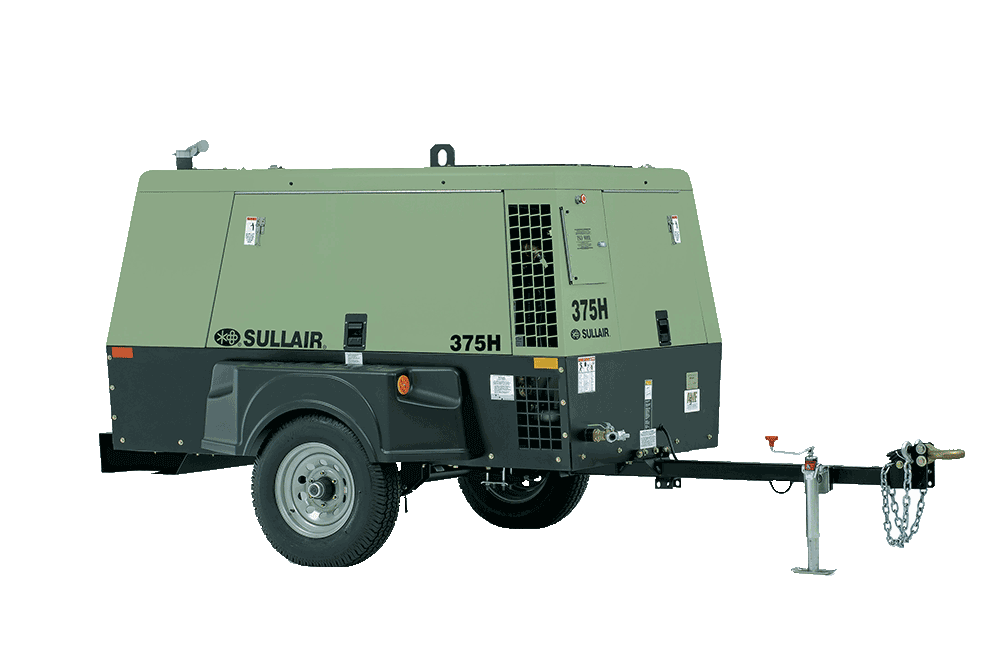

The Sullair 375H portable air compressor is designed for total accessibility and reliability. Crafted for use in wide variety job applications and locations, you can choose to power the 375H with the following engines:

  • Caterpillar
    • Tier 2: 3054C
    • Tier 3: C4.4
  • John Deere
    • Tier 3: 4045HF285









Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
375h t3
CFM
CFM

Flow

375 cfm
10.6 m³/min
Pressure
Pressure

Pressure

150 psi
10 bar
Horsepower
Horsepower

Power

129 - 140 hp
96 - 104 kw

  • Multi-Piece Canopy
  • Ample Service Doors
  • Highway Towable Running Gear
  • Large Curbside Toolbox
  • Curbside Instrument Panel
  • SSAM-Shutdown System & Annunciation Module
  • 0 to 100% Capacity Control
  • Three-Stage Dry Type Air Filters
  • AWF® Compressor Fluid - All weather, all climate fluid
  • Warranty
    • 2 year standard air end warranty
    • 5 year or 10,000 hour air end warranty when continuously serviced at the recommended intervals with Sullair AWF compressor fluid and filters
  • Quiet Operation
    • Meets US EPA sound requirements of 76 dBA @ 7 meters



  • Available with or without running gear
  • Filtration for instrument quality air
  • Aftercooler
  • Special paint
  • Spark arrestor
  • Cold weather starting aid
  • Fuel level gauge
  • Brakes (recommended where required by law)
  • Mechanical parking brakes
  • Ball hitch
  • Air filter maintenance indicators
  • Gauge package (Caterpillar)
  • Tachometer (Caterpillar)
  • Block heater
  • Ether starting aid (John Deere)

Performance

Actual Delivery cfm (m³/min): 375 (10.6)
Rated Pressure psig (bar): 150 (10)

Engines

Make & Model: John Deere 4045HF285 (T3)
Rated Power hp (kW): 140 (104)
Displacement in³ (cc): 275 (4507)
Rated Speed rpm: 2200

Make & Model: Caterpillar C4.4 (T3)
Rated Power hp (kW): 130 (97)
Displacement in³ (cc): 269 (4400)
Rated Speed rpm: 2200

Make & Model: Caterpillar 3054C (T2)
Rated Power hp (kW): 129 (96)
Displacement in³ (cc): 269 (4400)
Rated Speed rpm: 2200


DPQ Package — Includes Running Gear
Working weight lbs (kg): 4440 (2014)
Dry weight lbs (kg): 4050 (1787)
Length in (mm): 156.1(3966)
Width in (mm):77.2 (1960)
Height in (mm): 74 (1880)
Track Width in (mm): 67.5 (1715)
Tire Size: 225/75D15


DLQ Package — Less Running Gear
Working weight lbs (kg): 4195 (1903)
Dry weight lbs (kg): 3805 (1726)
Length in (mm): 98.8 (2510)
Width in (mm): 59.3 (1506)
Height in (mm): 63.6 (1616)
