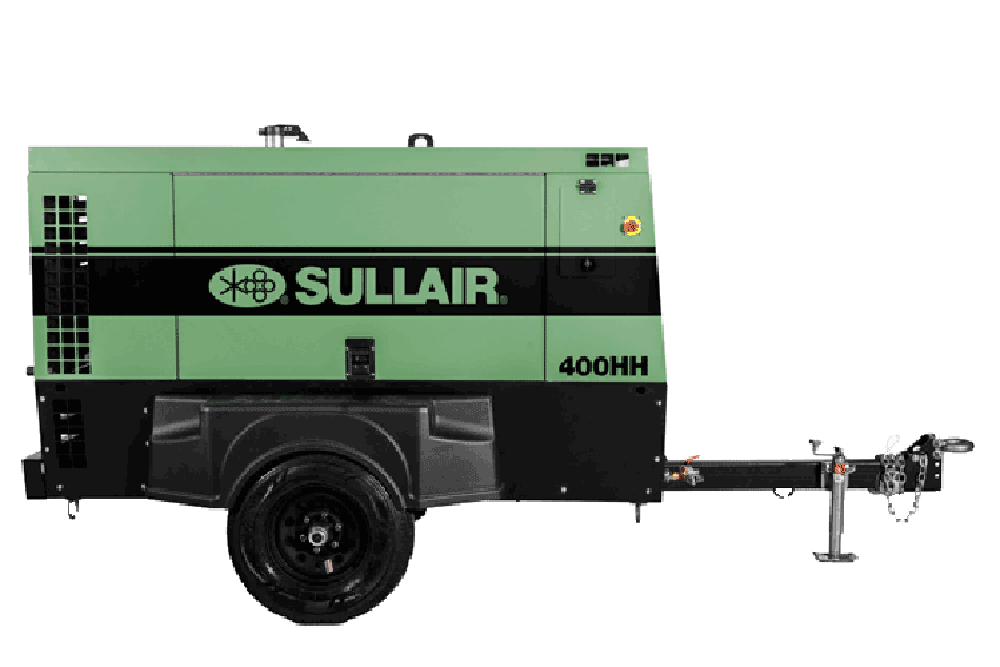

400HH Tier 4 Final Portable Rotary Screw Compressor

Durability Meets Versatility

The award-winning rer logoSullair 400HH portable air compressor is designed to get the job done for a variety of job site applications. Crafted for enhanced usability and serviceability, the 400HH features air pressures up to 200 psig.

  • Compact design
  • Easy pressure change
  • Extended runtime

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us
400HH
CFM
CFM

Flow

400 cfm
11.3 m³/min
Pressure
Pressure

Pressure

200 psi
13.8 bar
Horsepower
Horsepower

Power

157 hp
117 kw

  • Compact Design
    • Easier towing to and from the job site
    • Improved maneuverability — fits more easily in smaller space
    • More convenient storage — on the job site or at the yard
  • Easy Pressure Change
    • Select models shift from low to high pressure with the flip of a switch
  • Quiet Operation
    • 74 decibels at 23 feet operating at full load
  • Extended Runtime
    • Oversized 65 gallon tank
    • Up to 10 hours of runtime at full load
      • 5–7% improvement in fuel consumption at full load compared to previous models
  • Easy Service and Maintenance
    • Swing doors with slam latches to ensure doors stay open
    • Easy access to key components including:
      • Cooler; aftercooler (if equipped)
      • Compressor fluid and air filters
      • Engine filters
      • Battery and battery disconnect easily reachable
  • Low Fuel Shutdown
  • Discharge Temperature Sensor
  • Electric Brakes
  • LED Tail Lights
  • LED Turn Lights
  • Clearance Lights
  • Sullair AWF® All Weather Fluid — Factory Fill Lubricant

  • Cold weather package
  • Jack caster with wheels
  • Mechanical parking brake



Performance

Actual Delivery cfm (m³/min): 400 (11.3)
Rated Pressure psig (bar): 200 (13.8)
Pressure Range min/max (bar): 80 (5.5) / 225 (15.5)
Fuel Consumption Full Load gal/h (l/h): 7.4 (28)
Maximum Operating Altitude ft (m): 9000 (2743)

Engine

Make & Model: CAT C4.4 (T4F)
Operating Speed rpm: 1900
Available Power bhp (kW): 157 (117)
Displacement in³/l: 269 (4.4)
Cooling System Capacity gal (l): 6.9 (26)
Engine Oil Capacity qts (l): 12 (11.5)
Fuel Tank Capacity gal (l): 65 (246)
Electrical System Voltage: 12
Battery Rating CCA: 1125
DEF Consumption % of Fuel: 2.3%
DEF Capacity gal (l): 5 (19)


Compressor

Service Valves No. & (Size): 1 (1 ½ ")
Compressor Oil Capacity gal (l): 8 (30)


DPQ Package — Includes Running Gear
Working weight lbs (kg): 4840 (2195)
Dry weight lbs (kg): 4200 (1905)
Length in (mm): 156 (3962)
Width in (mm):77 (1958)
Height in (mm): 76 (1921)
Track Width in (mm): 67 (1702)
Max Towing Speed mph (km/h): 55 (89)
Axle Rating lbs (kg): 5000 (2268)
Tire Size: 225/75R15


DLQ Package — Less Running Gear
Working weight lbs (kg): 4610 (2092)
Dry weight lbs (kg): 3970 (1801)
Length in (mm): 101 (2577)
Width in (mm): 59 (1506)
Height in (mm): 64 (1619)
