HSP Hospital Suction Packages

A Vacuum System You Can Count On

Sullair Hospital Suction Packages (HSP) are specifically designed to provide continuous vacuum for hospital applications. Manufactured from the proven rotary screw vacuum system of Sullair, these pumps meet or exceed the requirements for packaged vacuum pumps per NFPA 99: Health Care Facilities Code, 2015 Edition. Simplex packages have a capacity range from 78 to 1000 acfm (2.2 to 28.3 m³/min); duplex packages are available from 78 to 300 acfm (2.2 to 8.5 m³/min) per pump. HSP systems are warranted for two years. All packages are equipped with base load transfer switches for alternating purposes.

WARNING Waste Anesthetic Gas Disposal:

This product is designed and certified for medical vacuum systems use only. The product contains non-inert lubricants and seals and cannot be used for waste anesthetic gas disposal (WAGD). USE IN WAGD APPLICATIONS POSES POTENTIAL FIRE AND EXPLOSION HAZARDS.

CAUTION NFPA 99:

It is the obligation of the medical facility and installer to ensure that the installation of this product is in compliance with the current NFPA 99 requirements

Models vary by region. Please contact your Sullair sales representative for more details.

Jump To:

Specs Contact Us

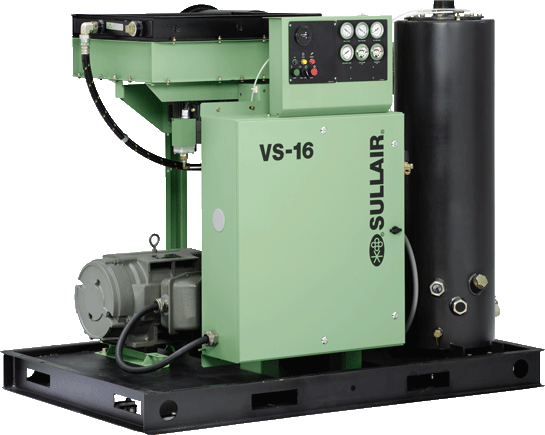

Sullair VS-16 vacuum systems

Cost Effective

Requiring less power than conventional pumps, HSP systems offer low operating costs. The inherent high efficiency of the rotary screw mechanism, combined with 0 to 100% capacity control which matches throughput to demand, provides significant energy savings.

Duplex Hospital Suction Package

VS-10 and VS-12 models are designed for hospital applications (HSP) that meet or exceed NFPA 99, 2015 Edition standards for Health Care Facilities.
